TF32+T


Description

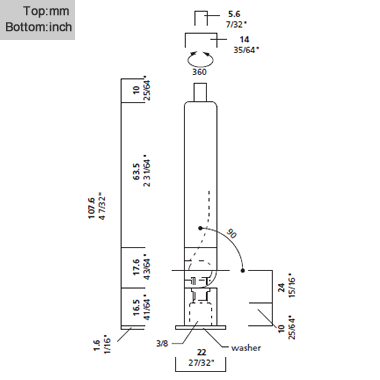

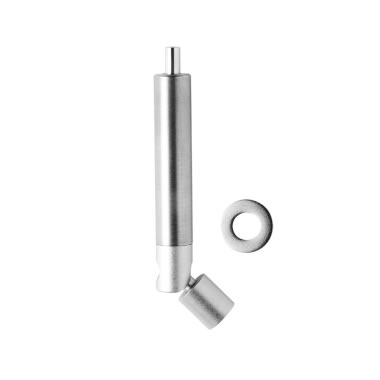

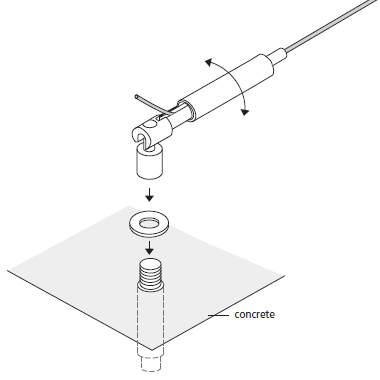

The TF-Type Gripper is a versatile tensioner. Simply twist the body of the TF series, and it draws in the cable. These TF-Type Grippers are designed with a teflon washer to prevent cable twisting and a side exit for excess cable. The base of the TF32+T swivels 360 degrees and pivots 90 degrees to permit angled installations or mounting to the wall. The mounting base has 3/8-16 female thread, permitting installations into concrete floors (using a 3/8-16 threaded nut, anchor or other feature). It can also be fastened to wood surfaces by using a 3/8-16 hangerbolt or Arakawa 32W and 60W mounting plates.

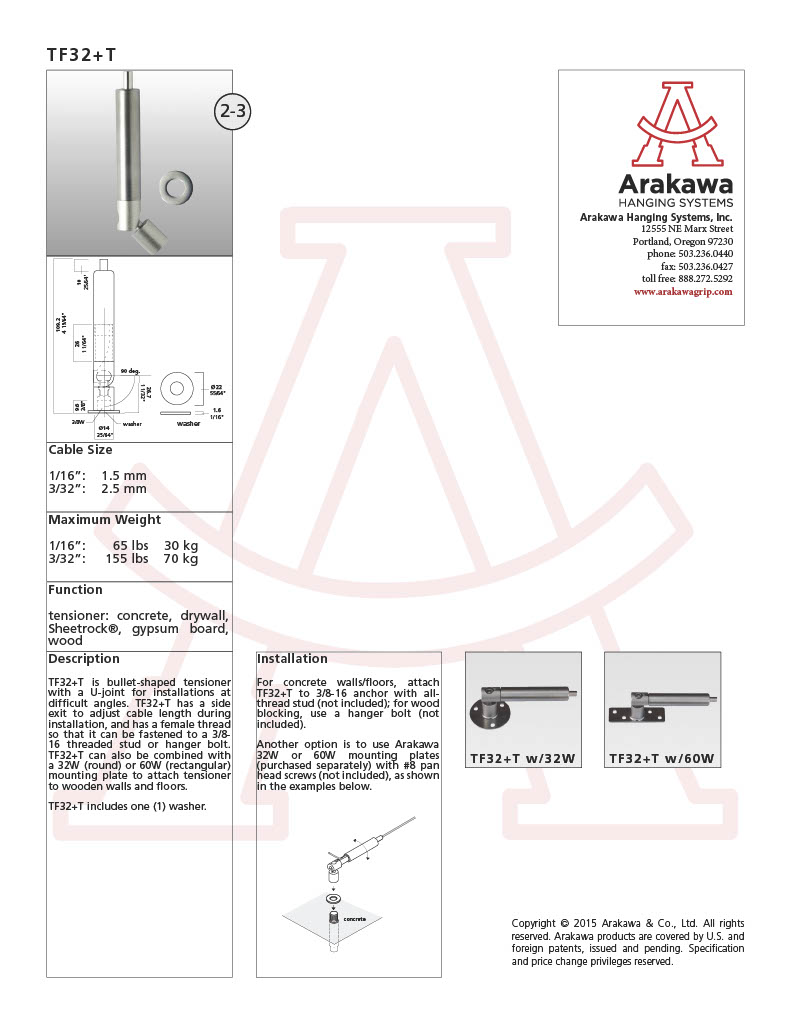

Installation Guide

Download
