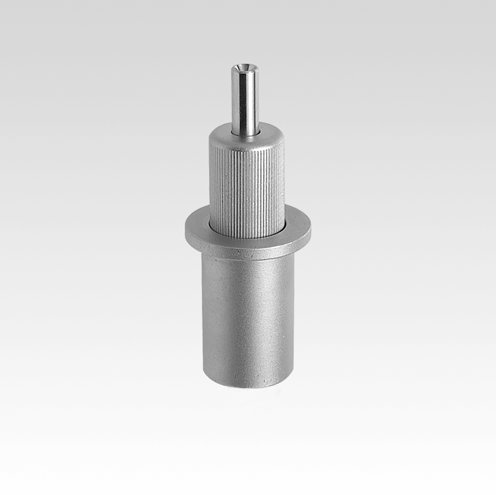

SF23CSet


Description

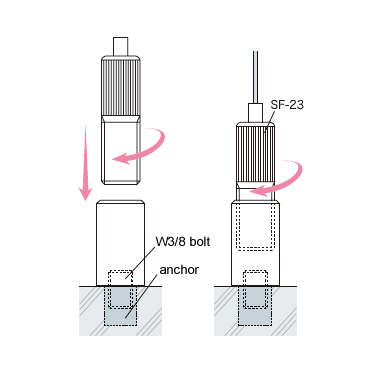

SF23 is is a lower profile floor tensioner. Use it to tension cables to minimize the movement of displays. The SF23CSET includes a countersunk mounting base for concrete. Drill first hole in concrete to accept the base. Then drill a second hole to accept an anchor. Use a single bolt to secure the base to the anchor.

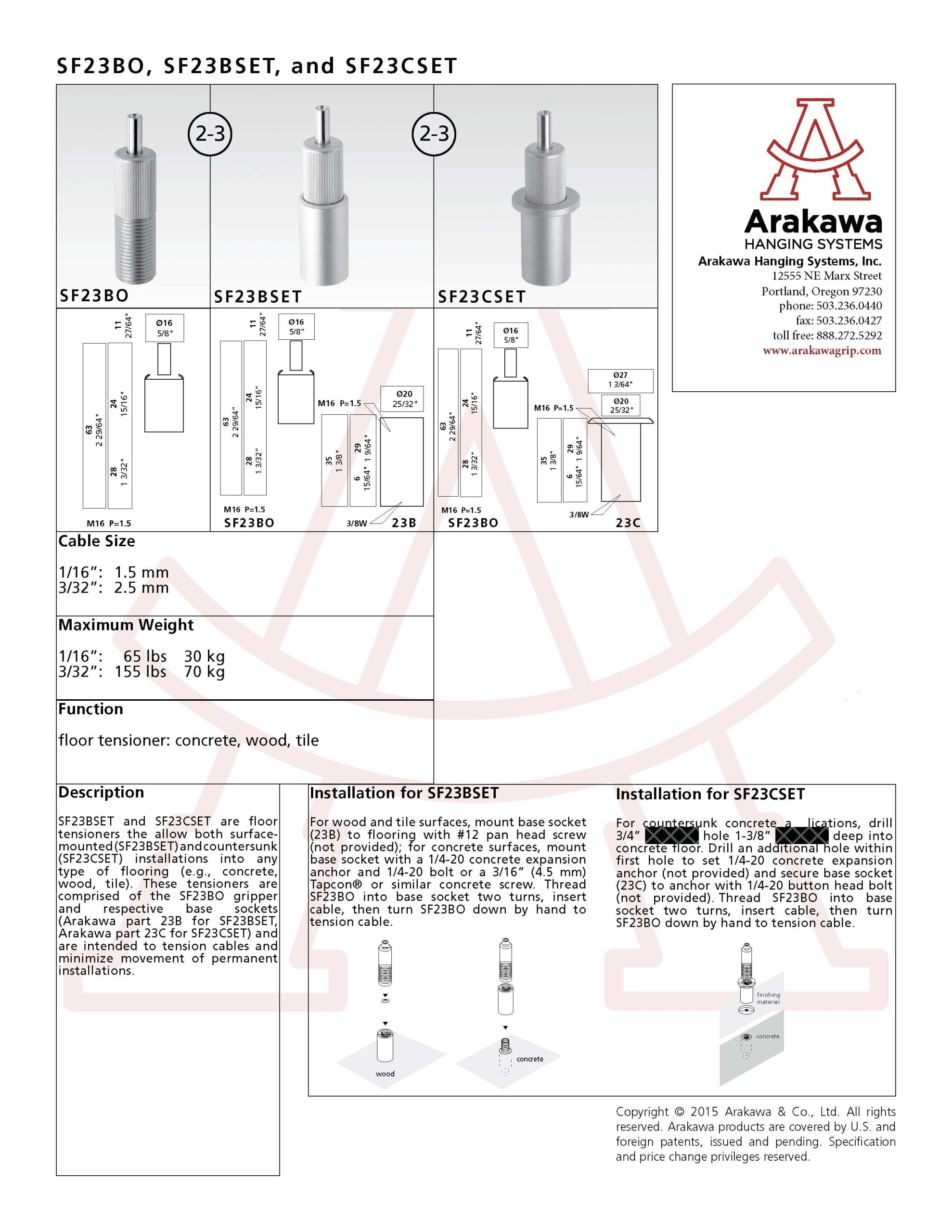

Installation Guide

Download
