BRG2


Description

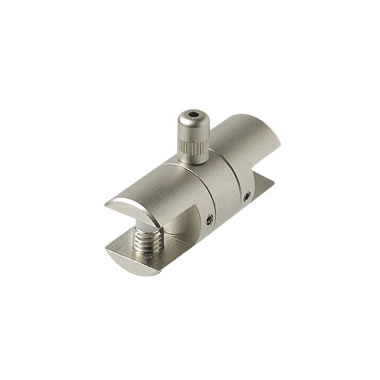

The BRG-Type rotating Gripper was designed to hold lightweight glass or plexiglass shelves either horizontally or at an angle. Similar to the FRG, but accepts smaller cable and lighter loads to accentuate a more invisible look. BRG-Type will hold a vertical panel using a plastic-tipped set screw. The allowable weight for panels depends on panel materials used and conditions of the installation space. Includes “S” (safety) cap, which hinders unwanted adjustment by manually locking the mechanism.

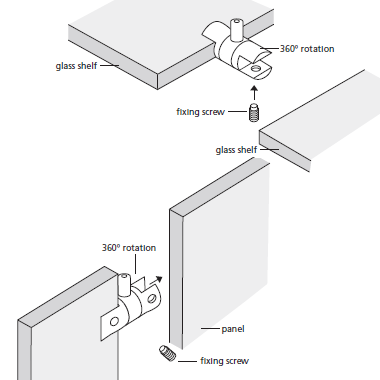

Installation Guide

Download

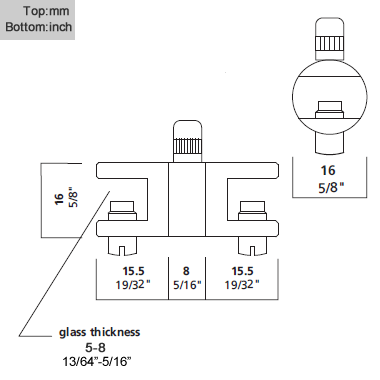

CAD

Download
